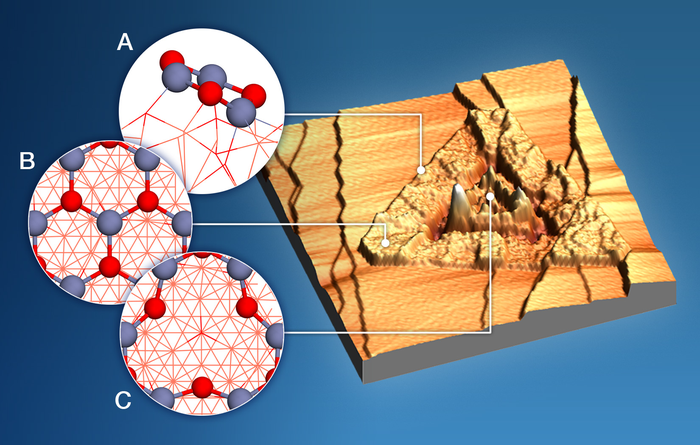

This scanning tunneling electron microscope image shows the structure of a copper-zinc oxide catalyst that converts methane to methanol with and without water. Triangular zinc-oxide "islands" rest on a copper-oxide thin film (flat background) over a copper substrate (not seen). The "step" edges between copper-oxide and zinc-oxide (A, where blue is zinc, red is oxygen) are the main active sites for producing methanol when no water is present. The semi-flat areas have a relatively perfect crystal structure (B) and are inert during the reaction. The very rough areas are likely associated with defects—in this case with fewer zinc atoms and an oxygen-rich crystal structure (C)—and are the most active sites for methanol production when water is present.
