Figure 2. Software Performance (IMAGE)

Osaka University

Figure 2. Software Performance

Caption

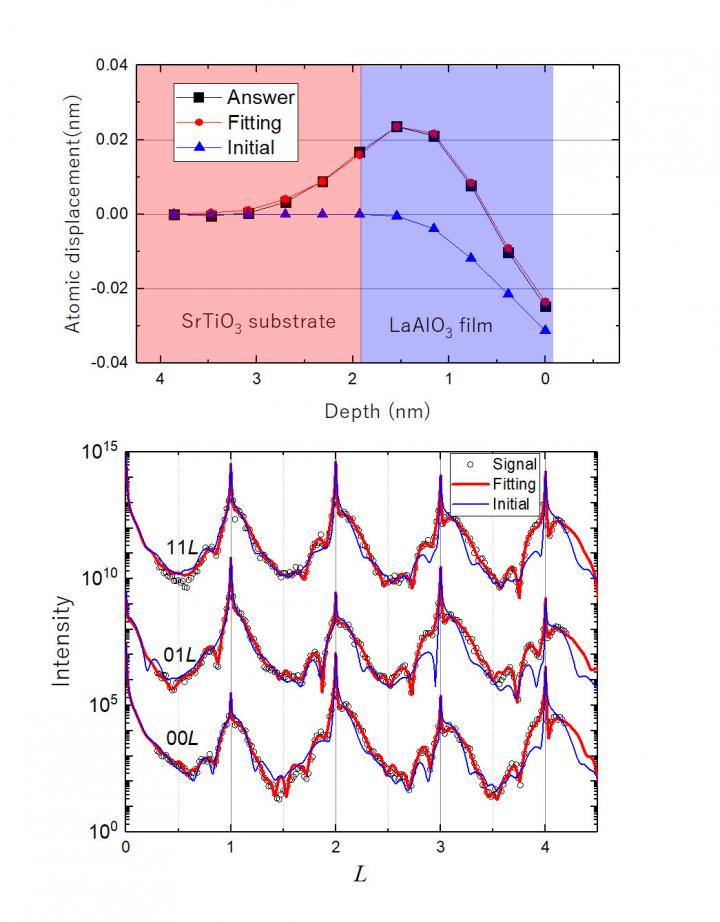

This is an example of the software performance. (top) Atomic displacement of model structure as a function of depth. (bottom) Scattered x-ray intensity profiles calculated from the model structure (demo-data, open circles), initial structural model (blue curve) and the result of the refinement (red curve). In this figure, the analysis on the demo-data to show the accuracy of the method. The analysis on an experimentally obtained dataset is also reported.

Credit

Osaka University
