The building water system, including service line, based on drawings and experience

Caption

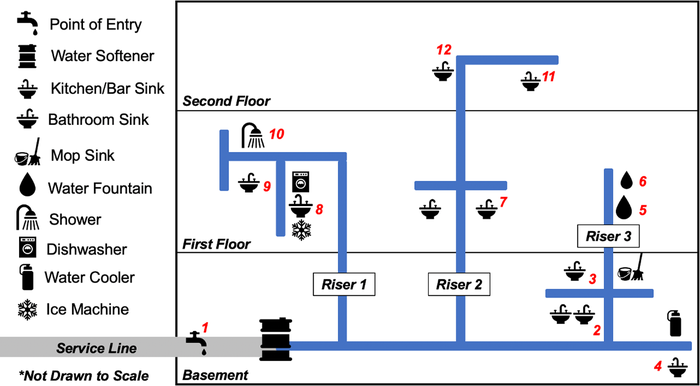

Fire systems, irrigation systems (rainwater), and toilets (rainwater/separate piping system) are not included. Pipes should only be considered vertical when they cross a floor line (i.e., horizontal physical space is necessarily using a vertical schematic representation here). On-demand water heaters are used, so cold water lines provide water almost all the way to sinks.
