Flare Graph (IMAGE)
Caption

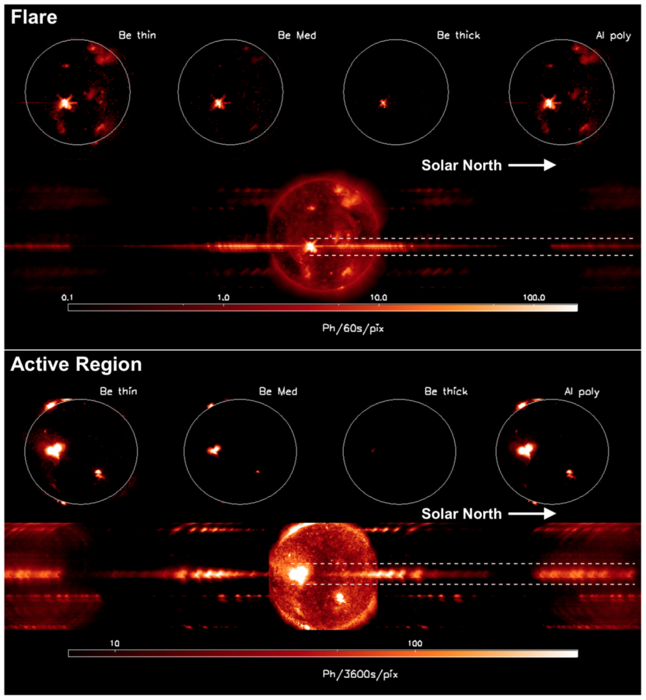

Simulations of what the CubIXSS imaging spectrometer will see during one minute of a solar flare (top) and over one hour from an active region. At the top of the detector, four images of the Sun are taken through different filters that block different X-ray wavelengths (“colors”). At the bottom of the detector, the entire X-ray spectrum from each point on the Sun spreads out sideways, allowing a detailed measurement of the temperature and composition of plasma at each point in the corona. (The solar images are rotated so the solar north pole points to the right.)
Credit
SwRI
